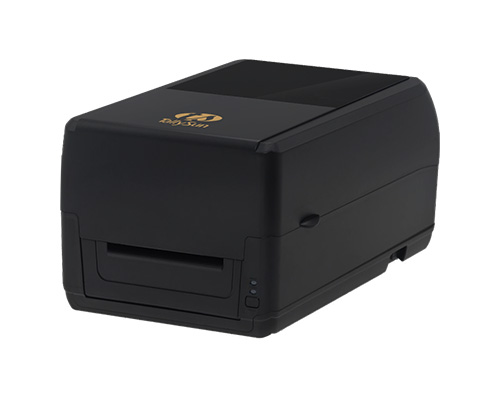

TallySun DP-3413 USB Label Printer
- 203 dpi Print Resolution
- USB Interface
- 300M Ribbon
- High Speed Label Printer
Months Varian Guaranty
کاربردهای TallySun DP-3413 USB Label Printer
انبار و لجستیک
لیبل و برچسب
بیمارستان
مچ بند بیمار و لیبل تغذیه
خدمات درمانی
چاپ و تولید دفترچه بیمه
رستوران و کافی شاپ ها
رسید و فیش
شرکت ها و سازمان ها
لیبل اموال و خُردشونده
فروشگاه ها
فیش و رسید خرید
فروشگاه‌های زنجیره‌ای
لیبل قیمت و بارکد
هایپر مارکت ها
صدور فاکتور و فیش
کارخانجات و تولیدی ها
لیبل متال کالاTally Sun DP-3413B: 4" thermal transfer/ direct printer
1. Fast and Efficient
Tally Sun DP-3413 built-in 200Mhz 32-bit RISC process with 8MB SRAM and 8MB Flash, furthemore, with 5" print speed (300 dpi) to assure of high performance for your label printing Automation is the next big thing in the industry, then DP-3413 is your good choice.
2. Inspiring design structure
a. With dual-motor gear driven design
b. Support 300 meters(984") ribbon supply pn 25.4mm(1") core ( coated side out )
c. Sensors for black mark, head open, transmissive gap and ribbon-end
d. Real Time clock as standard
3. Power programmable languages and BarTender
a. Tally Sun DP-3413 with powerful TSPL-EZ firmware which supports EPL, ZPL, DPL, and Zebra emulations
b. Bundled with well-known BarTender label editing software as standard
4. Capable to print 1D and 2D barcode symbologies
Tally Sun DP-3413 can print most of 1D barcode symbologies, and 2D barcode includes PDF-417, MaxiCode, DataMatrix and QR code.
| Label & Barcode Printer | |
|---|---|
| Print Technology | Direct Thermal or Thermal Transfer |
| Print Resolution | 300 dpi |
| Print Speed | 127 mmps |
| Print Width | 104 mm |
| Ports | USB |
| Consumables | |
| Roll Types | Continious , Die-cut , Notched , Black mark |
| Minimum Label Width | 2 mm |
| Maximum Label Width | 118 mm |
| Minimum Label Length | 10 mm |
| Maximum Label Length | No Limit |
| Ribbon Lenght | 300 M |
| Ribbon Types | Wax , Resin , Wax-Resin |
| Specifications | |
| CPU | 32-bit RISC CPU |
| Flash Memory | 8 MB |
| SDRAM Memory | 8 MB |
| External SDRAM Memory | Extendable to 4 GB |
| Sensors | Gap , BlackMark , HeadOpen , Ribbon End |
| Internal Fonts | 8 alpha-numeric bitmaps fonts , Support TTF Font |
| Standard Barcodes | 1D Bar Code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI,PLESSY,POSTNET - 2D Bar Code: PDF-417, Maxicode, DataMatrix, QR code |
| Printer Dimenstions | |
| W | 234 mm |
| L | 302 mm |
| H | 194 mm |
| Weight | 3.1 KG |
| Country of Origin | Taiwan |
