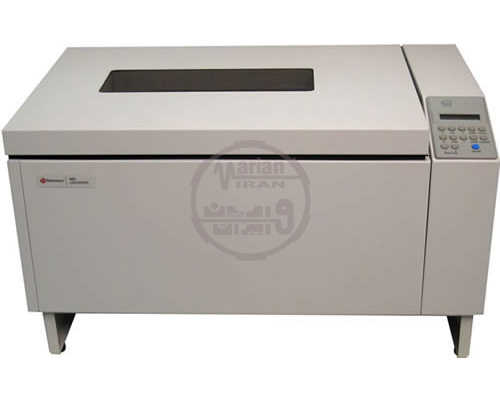

TallyGenicom 6312 Line Printer

Tallygenicom T6312 Line Printer

Tally Genicom 6312 Line Printer, is a hevy duty dot-matrix printer which enhanced by hammers instead of pins to do heavy workout job in a very very low cost and efficient.

The TallyGenicom 6300 Series accommodates the most demanding applications in the harshest environments. With their rugged and efficient design, they provide the most reliable and economical printing solution.

T6312 Line Printer Features

• 1200 lines per minute (text), 150 inches per minute (graphics)
• Monthly workloads up to 345,000 pages per month
• Limited life-time shuttle warranty
• Straight paper path for jam-free operation
• Automatically sets correct print gap

TallyGenicom T6312 Printer Standard Configurations

621017 - 1500 LPM - Enclosed Cabinet Line Matrix Printer, 136 Column Passive Stacker, Energy Star Compliant - with Standard Serial and Centronics Parallel Interface
621023 - 1500 LPM - Enclosed Cabinet Line Matrix Printer, 136 Column Passive Stacker, Energy Star Compliant - with Standard Serial, Centronics Parallel, Twinax and Coax Interface
621025 - 1500 LPM - Enclosed Cabinet Line Matrix Printer, 136 Column Passive Stacker, Energy Star Compliant - with Standard Serial, Centronics Parallel and Ethernet Interface

TallyGenicom T6312 Printer Consumables

082727 - Ribbon Cartridge - Black 40 Million Character - 4 Pack
083683 - Ribbon Cartridge - Black 60 Million Character - 4 Pack
082725 - Ribbon Cartridge - Black 250 Million Characters - 4 Pack

TallyGenicom T6312 Printer Options

083482 - Field Conversion Kit - Ethernet I/O
083789 - Field Conversion Kit - IBM I/O
079697 - Graphics Application Manual

Tallygenicom 6312 Line Matrix Printer Specifications

Technology type - Line impact dot matrix
Print Speed (text) - 1500 lines per minute
Print Speed (graphics) - 187 inches per minute
Workload (ppm) - 430,000 pages per month
Consumables - Easy-load, SmartRibbon® clean-hands cartridges up to 250 million characters -ribbon fault detection
Character Printing Modes - Constant density fonts; enhanced fonts
Character Sets - Over 1000 character sets
Characters Per Inch - 5, 6, 6.7, 7.5, 8.3, 8.6, 10, 12, 13.3, 15, 16.7, 17.1, 20 cpi
Lines Per Inch - 1.5, 2, 3, 4, 5, 6, 8, 9, 10, 12 (plus variable line spacing)
Resolution - Maximum: 240 x 288 (H x V)
Fonts - Draft, Data Processing, Courier, Gothic, OCR A & B
Graphics Compatibility - Tally® Industrial Graphics; QMS® CODE V™ Version 2; Printronix® PGL
Bar Codes - Code 39, Code 128, Interleaved 2 of 5, UPC-A, UPC-E, EAN 8, EAN 13, EAN 128, Codabar, Identicon 2 of 5, MSI, POSTNET, PDF-417
Control Panel - Alphanumeric display (six languages) provides complete access to printer operation, configuration, calibration and test features. Includes lockout feature, 32 character 2 line display, save up to 10 unique configurations
Emulation - Tally Line Matrix Printer, Tally Dot Matrix Printer, Printronix® P600 and P6000, HP 2564C, DEC® LG01, Epson® FX1180, Genicom® ANSI & IBM® Proprinter III XL
Interface and Connectivity - Serial RS232 (up to 38.4K Baud) and IEEE 1284 Compliant Centronics Parallel (both ports hot, and active port selected automatically)
Paper Handling - Straight paper path, four tractor system, paper out and paper motion detection, forms position retained in non-volatile memory
Paper Size - Width: 2.5" - 18.9", forms length: 1 - 255 lines
Paper Weight - Up to 6-part forms, forms thickness maximum .025", weight: 15-100 lb. stock
Physical Specifications (HxWxD) - 40" x 28.2" x 28.3"; Shipping weight: 250 lbs.
Acoustics - 52 dB(A)
Temperature - Temperature range: 10°C to 40°C (operating); -40°C to 66°C (non-operating)
Humidity - Humidity: 10% to 90% non-condensing (operating); 5% to 95% non-condensing (non-operating)
Power Requirements - 90 - 130/180 - 264 V, 57 - 63/47 - 53 Hz (auto-ranging)
