Tally Dascom DL310 Label Printer
Applications of Tally Dascom DL310 Label Printer
Laboratory Labels
jewelry Labels
Transportation
Postal Labels
Drugstore
Companies
Assets Labels
Super Markets

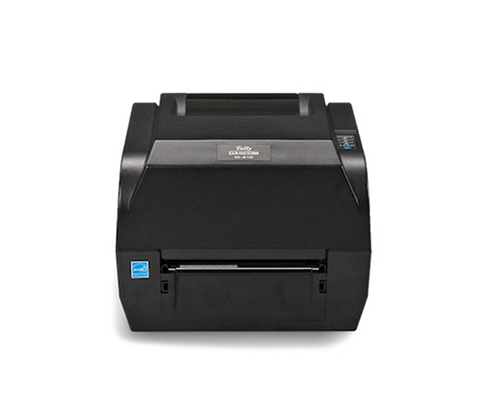

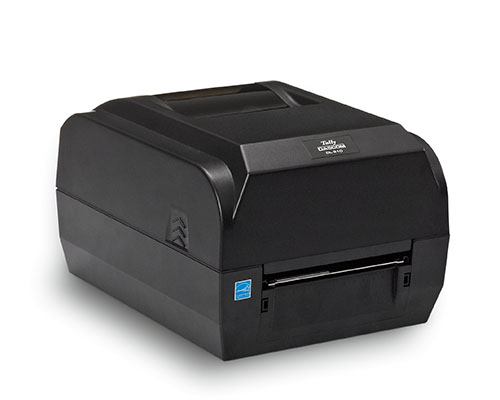

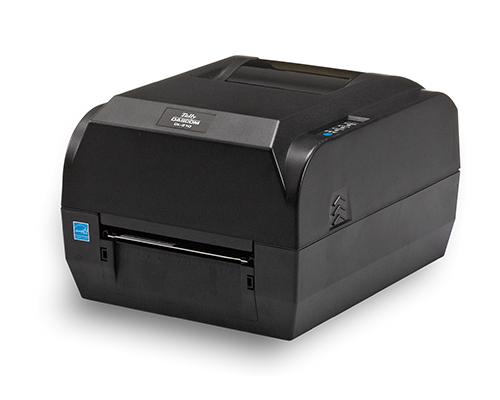

DASCOM Thermal Printer DL-310
The Tally Dascom DL-310 thermal transfer printer impresses thanks to its reliability, precision and performance. Its user-friendly design features a space-saving upward-facing opening, which makes replacing consumables child's play.
A wide range of interfaces makes the printer easy to integrate into existing systems. Alongside the standard model, models with integrated trimmer or label dispenser are also available.
The DL-310 also employs a 300 dpi print head, ensuring a pin sharp image for even the smallest graphics.
Highlights at a glance
- Easy and Quick media loading
- Variety of interfaces
- Supports ZPL and EPL emulation
- 300 dpi
Models
- DL-310 standard model
- DL-310 model with cutter
- DL-310 model with peeler
| Technical Data | |
|---|---|
| Print Speed | 102 m/s |
| Print Width | 102 mm |
| Print Method | |
| Print Resolution | 300 dpi |
| Flash Memory | 8 MB |
| SDRAM Memory | 16 MB |
| Interface | USB 2.0 |
| Optional Interfaces | Serial , Parallel , Ethernet |
| Emolutions | ZPL II , EPL |
| Ribbon and Thermal Paper | |
| Ribbon Width | 33-110 mm |
| Ribbon Length | 300 m |
| Ribbon Diameter | Core 1 Inch and Outside 68mm |
| Media | 25-118 mm |
| Media Thickness | 0.06-0.18 mm |
| Media Diameter | Core 1 or 1.5 Inch and Outside 5 Inch |
| Sensors | BlackMark , Label Gap, Farbband |
| ٌweight | 3 KG |
Tally Dascom DL-310-v32.pdf
DL310 Bruchure.pdf
With Varian Guaranty and 10 Years After Sales Service
Call us On
+98 (21) 8875 48 71
To download Drivers & Utilities of this Product, click the link blow
Download Driver of Tally Dascom DL310 Label Printer
